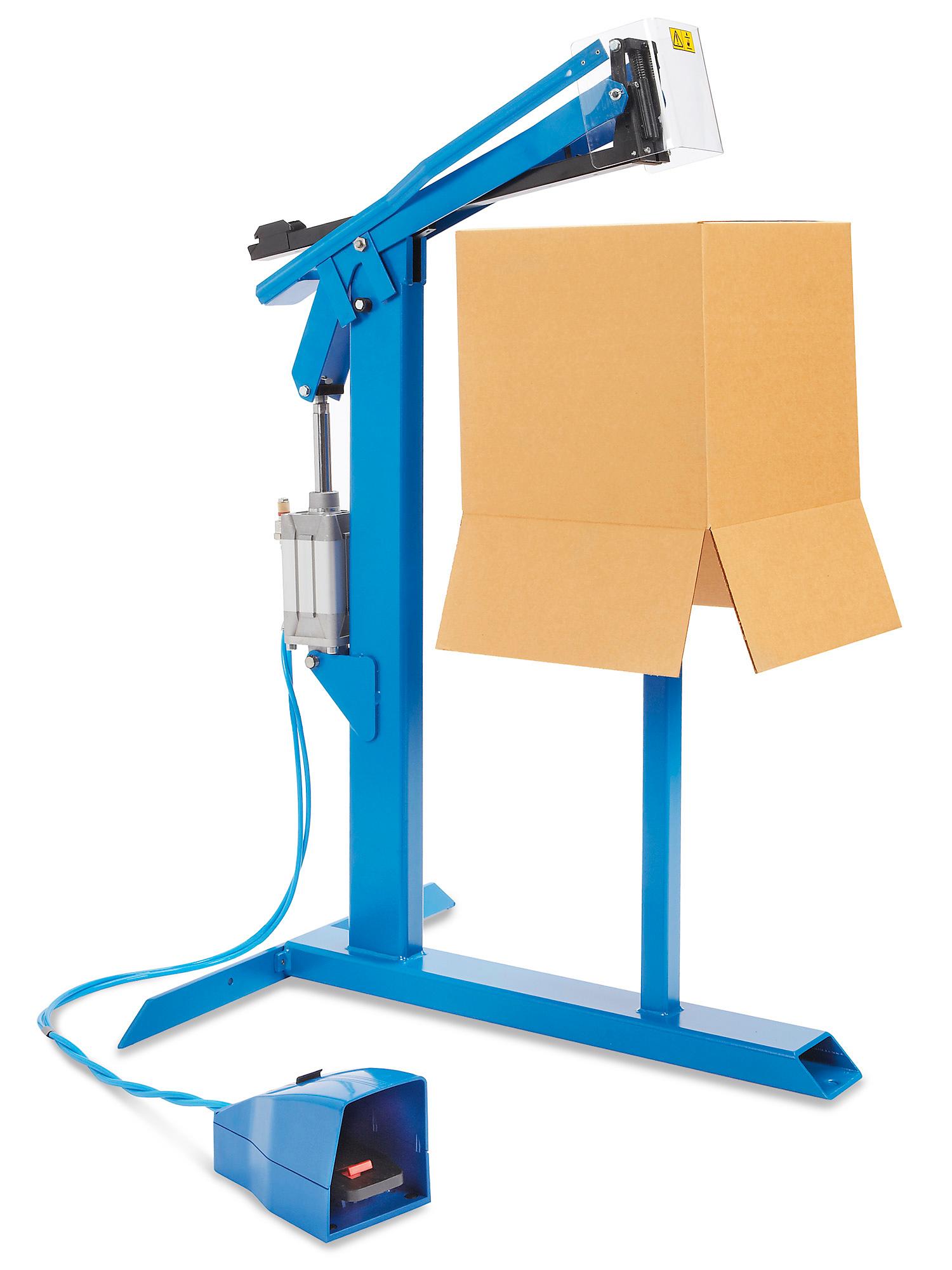

Kihlberg Pneumatic Bottom Stapler

  • Staple cartons twice as fast. Seal up to 100 cartons/hour.
  • Use with Air Compressor. Min. 80 lbs. per square inch.
  • 53″ overall height.
  • Use only with Kihlberg JK561 C58 or C34 Carton Stick Staples.
SKUWeight DESCRIPTION BOX STAPLECAPACITY WT.(LBS.) PriceQuantity
H-3070-15 1 lbs Kihlberg Pneumatic 275 lb. 300 93 $1,500.00
✓

Additional Info

DIMENSIONS:

  • Staple Post: 39″ tall
  • Maximum Working:
    • Depth: 15 7/10″
    • Height: 39 2/5″
COMPATIBILITY:

  • 5/8″ staples are for single wall boxes only.
  • 3/4″ staples are for single or double wall boxes.
SPECIFICATIONS:

  • PSI Requirements:
    • Tool Working Air Pressure (Maximum): 100 PSI

Feed Spring for Pneumatic Bottom Stapler

  • H-3070-48 Valve for Kihlberg Pneumatic Bottom Stapler
  • H-3070-AXPIN Axle Pin for Kihlberg Pneumatic Bottom Stapler
  • H-3070-FTVLV Foot Valve for Kihlberg Pneumatic Bottom Stapler
  • H-3070-NUT Nut for Kihlberg Pneumatic Bottom Stapler
  • H-3070-PROT Protector for Kihlberg Pneumatic Bottom Stapler
  • H-3070-RPKIT Stapler Head Repair Kit for Kihlberg Pneumatic Bottom Stapler
